Schaedler Yesco | PS 2097-LA

PS 2097-LA

MFG #2097-LA

UPC #78500703648

SKU #4134871

129 in Stock

Stock Item

More available 10/07/2025

$24.19 per EA (1) / EA

Regular Price: $34.82 per EA (1), you save $10.63 (31%)

QTY

U/M

Product description

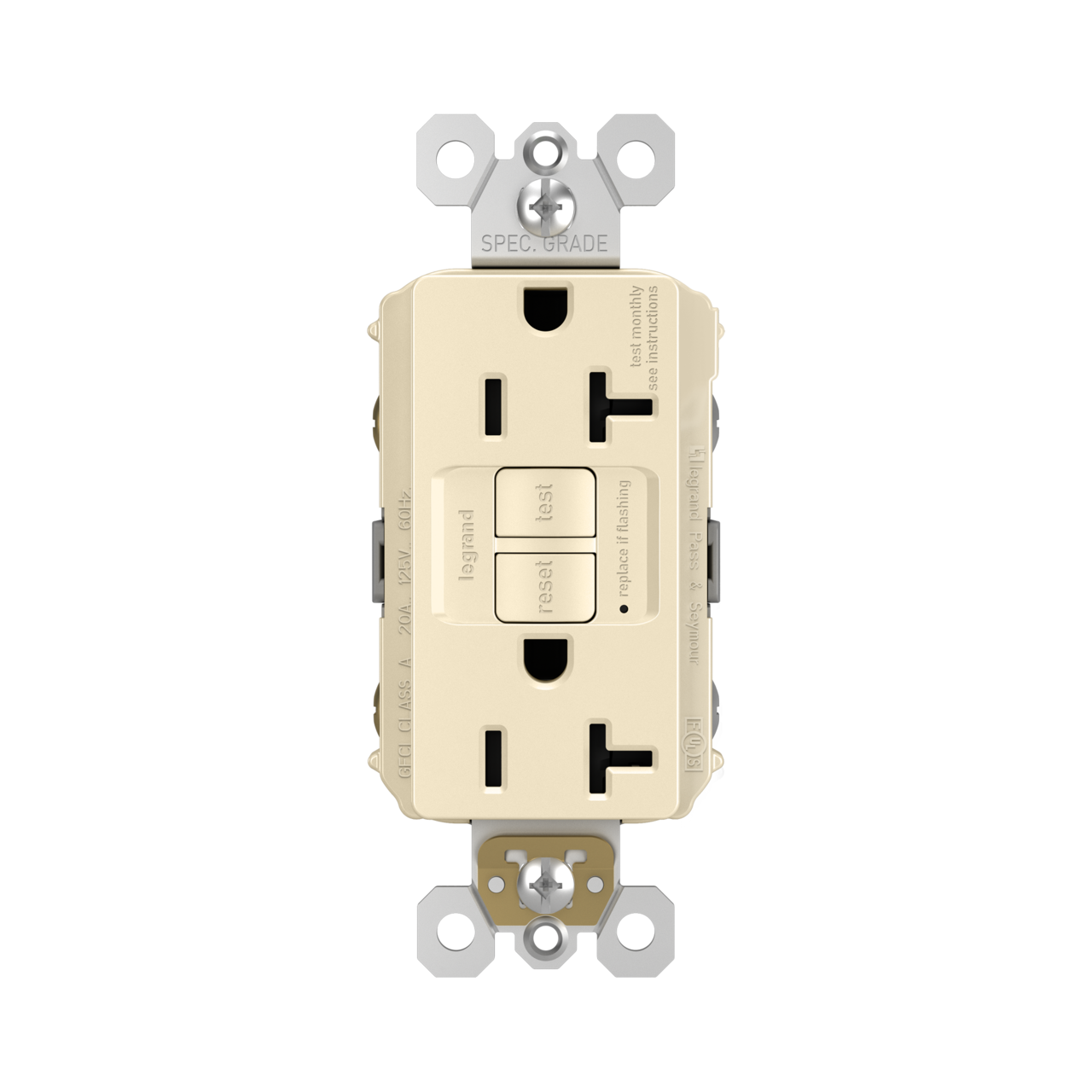

PS 2097-LA 20AMP LIGHT ALMOND 125VAC NEMA5-20R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX GFCI RECEPTACLE SPECIFICATION GRADE
Pass & SeymourÂ® RadiantÂ® GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions

: Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
: Pass & Seymour Radiant GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
: RECEPTACLE GFCI 125VAC 20A 2 3 LT ALMOND
: Product Catalog Page(s)
Specification Sheet
: cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|UL 498/943|UL 94 V-2 Flammability Rated
: Brand: Pass & Seymour Legrand
Actuator: Control Circuit
Amperage Rating: 20
Application: Commercial/Residential
Connection: Back and side wire
Country of Origin: CN
Environmental Conditions: 95% Humidity, UL 94 V2
Frequency Rating: 60 Hz
Height: 4.2
Interrupt Rating: 4 to 6 mA
Length: 1.03
Material: Thermoplatic
NEMA Rating: 20A
Number of Poles: 2
Number Of Wires: 3
Operating Temperature: -35°C to +66°C
Special Features: Spec Grade
Standard: UL, CULUS, cULus, UL Listed, FSUL
Sub Brand: radiant
Trip Range: 4 to 6 mA
Trip Type: .025 Second Nominal
Type: Outlet
Voltage Rating: 125
Width: 1.73
