MFG #2097-NTLTRI
UPC #78500704843
SKU #4182458
Product description
PS 2097-NTLTRI RADIANT SLFTST TR RECEP/NLITE GFI 20A IV

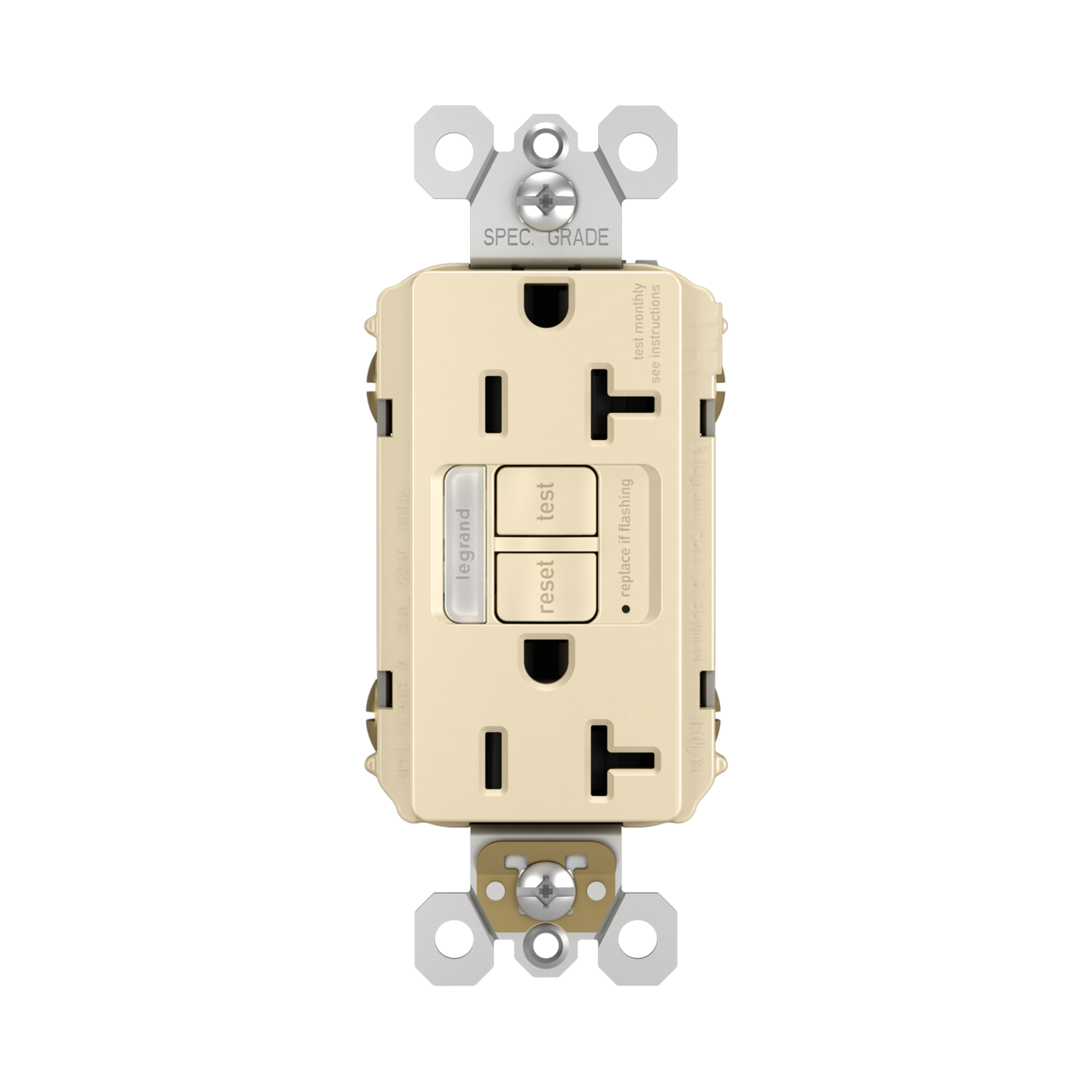

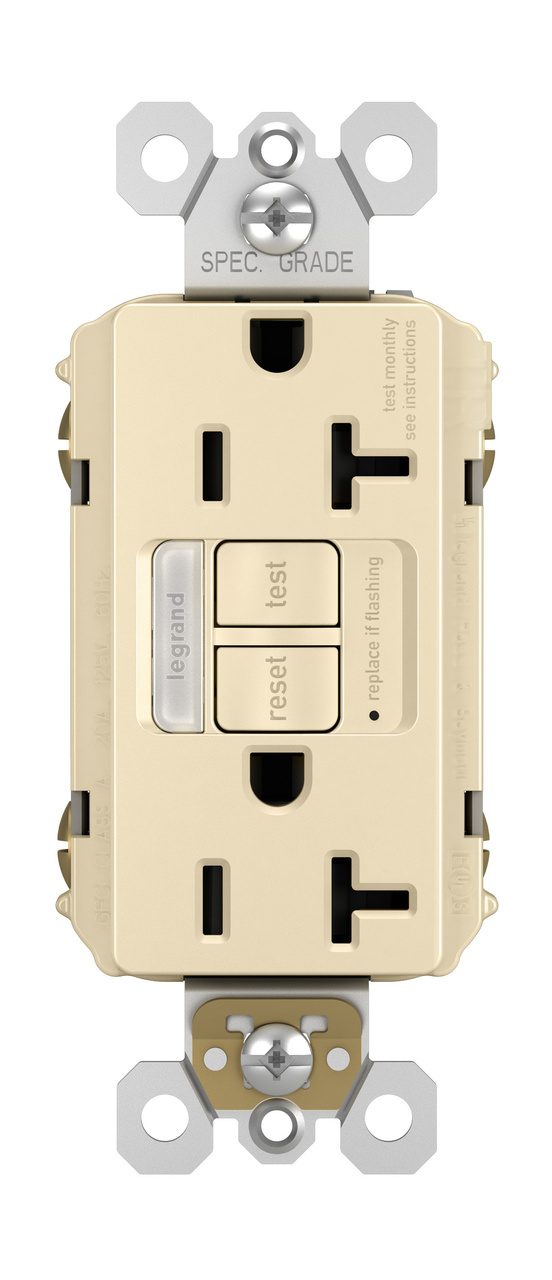

Pass & Seymour® Radiant® TradeMaster® GFCI Receptacle, Self-Test Tamper-Resistant, Series: 2097N, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Pass & Seymour® Radiant® TradeMaster® GFCI Receptacle, Self-Test Tamper-Resistant, Series: 2097N, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Commercial and Residential Applications
- Pass & Seymour® Radiant® TradeMaster® GFCI Receptacle, Self-Test Tamper-Resistant, Series: 2097N, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- RECEPTACLE GFCI 125VAC 20A 2 IVORY
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 42/144|cULus Listed File No. E42190|ECCN: EAR99|Federal Specification W-C-596|FULs Listed|NEMA WD-1/WD-6 Rated|UL 498/943
- Brand: Pass & Seymour LegrandActuator: Control CircuitAmperage Rating: 20Application: Commercial/ResidentialConnection: Back and side wireCountry of Origin: CNEnvironmental Conditions: 95% Humidity, UL 94 V2Frequency Rating: 60 HzHeight: 4.2Interrupt Rating: 4 to 6 mALength: 1.03Material: ThermoplaticNumber of Poles: 2Operating Temperature: -35°C to +66°CStandard: CULUS, UL, cULus, UL Listed, FSULSub Brand: radiantTrip Range: 4 to 6 mATrip Type: .025 Second NominalType: OutletVoltage Rating: 125Width: 1.73
