PS 60W33DPLX
MFG #60W33DPLX
UPC #78500710891
SKU #4463223
Product description

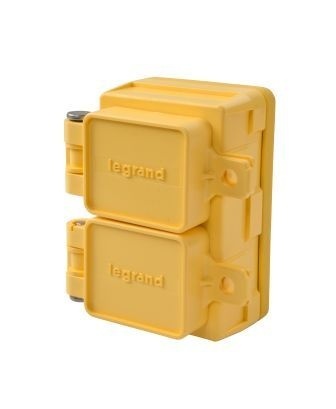

PS 60W33DPLX RECEPTACLE DUPLEX IP67 20A 125V 5-20R
Pass & Seymour® Straight Blade Receptacle, Duplex Glass-Filled Outlet Watertight, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA IP67 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 3.62 in W x 4.63 in H Dimensions
Pass & Seymour® Straight Blade Receptacle, Duplex Glass-Filled Outlet Watertight, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA IP67 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 3.62 in W x 4.63 in H Dimensions
- Product Catalog Page(s)
Specification Sheet
- Brand: Pass & Seymour LegrandAmperage Rating: 20Application: CommercialColor: YellowConnection: Screw TerminalsCountry of Origin: USDielectric Strength: Connectors: 2000V AC if rated 300V or less, 3000V AC if rated above 300V. Plugs: 2500V AC if rated 300V or less, 3500V AC if rated above 300V.Environmental Conditions: UL94 HBMaterial: ThermoplasticMounting: Box MountNEMA Rating: 5-20RNumber of Poles: Double PoleNumber Of Wires: 3Phase: SingleStandard: CULUS, UL Listed, CSA ListedSub Brand: Pass & SeymourTemperature Rating: -40° - 60° CType: OutletVoltage Rating: 125Wire Size: 14 - 10 AWG
