PS 692LAG
MFG #692LAG
UPC #78500700610
SKU #3836365
3 in Stock
Special Order Item. Minimum purchase may be required.
More available 11/26/2025
$1768.90 per C (100) / EA
Product description

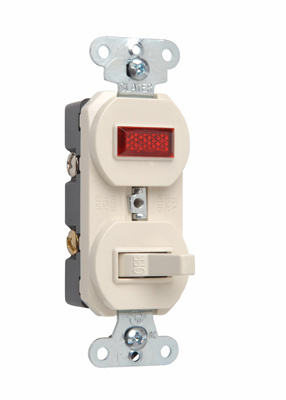

PS 692LAG 15AMP LIGHT ALMOND 120/125VAC SINGLE POLE TOGGLE SWITCH SINGLE
Pass & Seymour® Combination Switch/Receptacle, Grounding, 120/125 VAC, 15 A, 1 Pole, Neon Lamp, 1/25 W Lamp, 1NO Contact Configuration, Snap Action, Wall Mounting, Side Wire Terminal, -30 to 60 deg C, Thermoplastic, Light Almond, 1.32 in L x 0.94 in W x 4.06 in H Dimensions
Pass & Seymour® Combination Switch/Receptacle, Grounding, 120/125 VAC, 15 A, 1 Pole, Neon Lamp, 1/25 W Lamp, 1NO Contact Configuration, Snap Action, Wall Mounting, Side Wire Terminal, -30 to 60 deg C, Thermoplastic, Light Almond, 1.32 in L x 0.94 in W x 4.06 in H Dimensions
- Commercial and Residential Applications
- Pass & Seymour® Combination Switch/Receptacle, Grounding, 120/125 VAC, 15 A, 1 Pole, Neon Lamp, 1/25 W Lamp, 1NO Contact Configuration, Snap Action, Wall Mounting, Side Wire Terminal, -30 to 60 deg C, Thermoplastic, Light Almond, 1.32 in L x 0.94 in W x 4.06 in H Dimensions
- Long life red neon lamp in pilot light rated 1/25 W, 125 VAC
2-devices fit into the space of one
Side wire 12 and 14 AWG
Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects
Grounding combination devices meet NEC requirements
Toggle actuator
- SWITCH/RECEPTACLE COMBINATION 120/125VAC
- Product Catalog Page(s)
Specification Sheet
- ECCN: EAR99|UL 20|UL 94 V-2 Flammability Rated|UL Listed
- Brand: Pass & Seymour LegrandAction: SP & Pilot LightActuator: ToggleAmperage Rating: 15Application: Residential/CommercialColor: Light AlmondConnection: Side WireContact Configuration: N-OContact Rating: 15 Amp, 120/125 VACCountry of Origin: MXEnvironmental Conditions: Flammability: UL94 V2Material: ThermoplasticMounting: WallNumber of Poles: Single PoleNumber Of Wires: 3Operating Cycles: 30000Operating Temperature: Maximum continuous +60°C, minimum -30°CSize: 1.32 L x 0.94 W x 4.06 H InSpecial Features: Easily accessible break-off for separate or common feed. Long-life red neon lamp in pilot light rated 1/25 Watt, 125V. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.Standard: CULUS, UL20Sub Brand: Pass & SeymourSwitch Type: Switch, PilotType: CombinationVoltage Rating: 120/125 VACWattage: Pilot Light: 1/25Wire Size: 12-14Awg
