MFG #CSB20AC1-W
UPC #78500712609
SKU #3828007
Product description

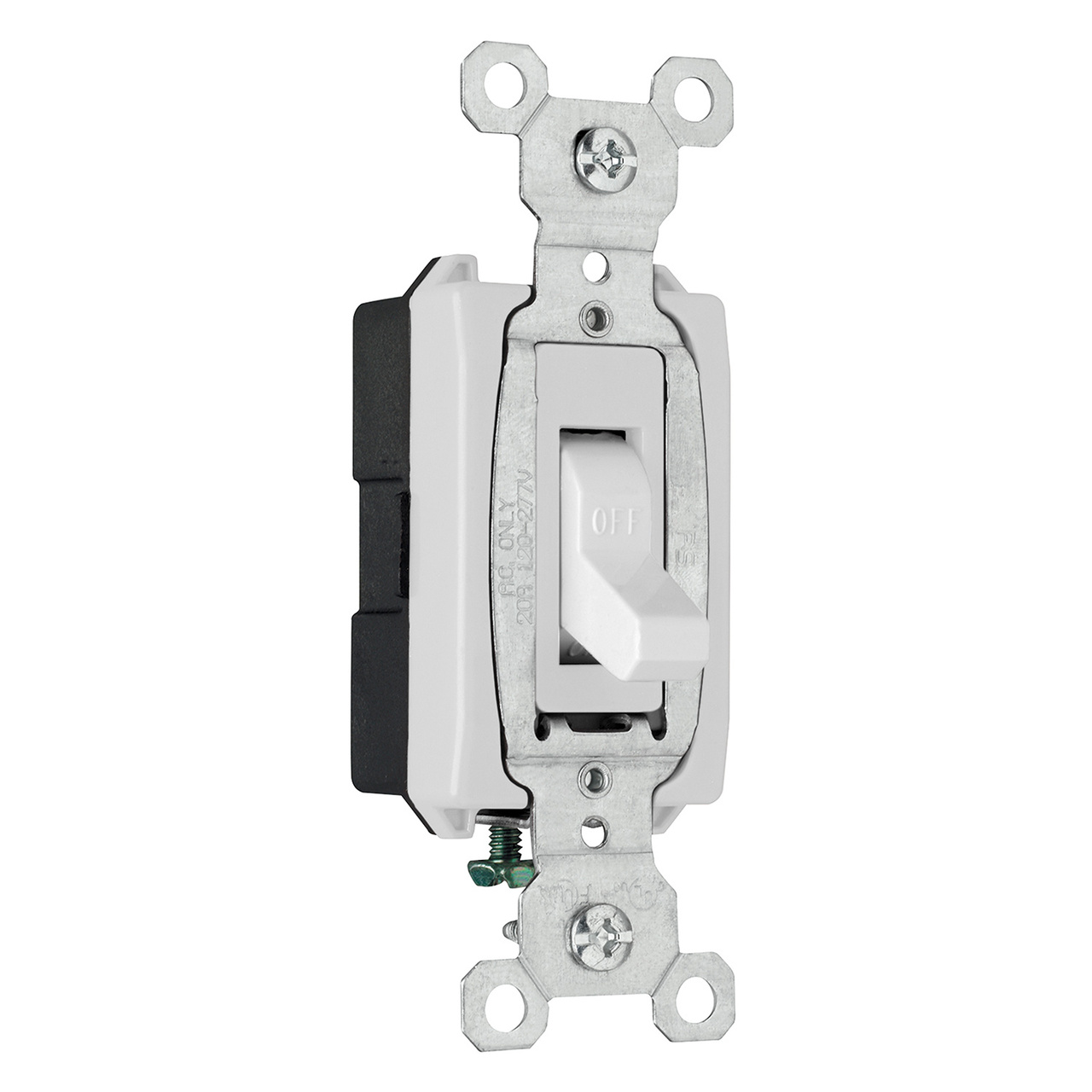

PS CSB20AC1-W 20A 120/277VAC B&S WIRE COMM SP SW
Pass & Seymour® Toggle Switch, Heavy Duty, 120/277 VAC, 20 A, 1/2, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
Pass & Seymour® Toggle Switch, Heavy Duty, 120/277 VAC, 20 A, 1/2, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
- For construction, commercial/residential uses such as retail, office, institutional, hospitality/lodging and multiple dwelling applications
- Pass & Seymour® Toggle Switch, Heavy Duty, 120/277 VAC, 20 A, 1/2, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
- Heavy duty bumpers for quiet, smooth operation
Oversized silver alloy contacts for long life and better heat dissipation
Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
Shallow design for ease of installation
Glass reinforced nylon back body for durability and strength
Cam control and spring actuator for positive makes and breaks with a minimum of arcing
Locking support provides resistance to face and back body separation
Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
Glass reinforced nylon back body, nylon front body
1/2 hp at 120 VAC, 2 hp at 240 VAC, 2 hp at 277 VAC power rating
Back and side wire connection
- SWITCH TGL 120/277VAC 20A 1/2 2HP 1 SCR
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 498/20|UL 94 V-2 Flammability Rated
- Brand:Â Pass & Seymour LegrandAction:Â Single PoleActuator:Â Toggle switchAmperage Rating:Â 20Application:Â CommercialColor:Â WhiteContact Rating:Â 20 Amp, 120/277 VACCountry of Origin:Â MXEnclosure:Â NylonInsulation:Â BareMounting:Â WallNumber of Poles:Â Single PoleSize:Â 3.3 inSpecial Features:Â Back & side wire, locking support, heavy duty toggleStandard:Â CULUS, UL 498/20, FEDSPECSub Brand:Â Pass & SeymourType:Â SwitchVoltage Rating:Â 120/277 V
