PS PS20AC3-I
MFG #PS20AC3-I
UPC #78500719540
SKU #1378131
Product description

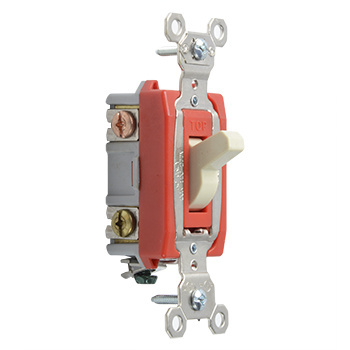

PS PS20AC3-I 20A 120/277VAC B&S WIRE SPEC 3W SWITCH
Pass & Seymour® Toggle Switch, 3-Way Heavy Duty, 120/277 VAC, 20 A, 1/2 hp Power, 3 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
Pass & Seymour® Toggle Switch, 3-Way Heavy Duty, 120/277 VAC, 20 A, 1/2 hp Power, 3 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
- For industrial uses such as health care, education and institutional applications
- Pass & Seymour Toggle Switch, 3-Way Heavy Duty, 120/277 VAC, 20 A, 1/2 hp Power, 3 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
- Heavy duty bumpers for quiet, smooth operation
Oversized silver alloy contacts for long life and better heat dissipation
Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
Shallow design for ease of installation
Glass reinforced nylon back body for durability and strength
Cam control and spring actuator for positive makes and breaks with a minimum of arcing
Locking support provides resistance to face and back body separation
Side and external screw pressure plate back wire with 14 to 10 AWG copper or copper clad wire
Bare insulation
Industrial EHD specification grade
1 hp at 120 VAC, 2 hp at 240 VAC power rating
Back and side wire connection
Specification grade
- SWITCH TGL 120/277VAC 20A 1/2HP 3 WALL
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL 498/20|UL94 V-2 Flammability Rating
- Brand: Pass & Seymour LegrandAction: Three poleActuator: Toggle switchAmperage Rating: 20Application: Industrial Spec GradeColor: IvoryContact Rating: 20 Amp, 120/277 VAC, 20Amp, 120/277VacCountry of Origin: MXEnclosure: NylonInsulation: BareMounting: WallNumber of Poles: 3-WaySize: 3.3 inSpecial Features: Back & side wire, locking support, heavy duty toggleStandard: FEDSPEC, CULUS, UL 498/20, FEDSPEC, CULUS, UL 498/20, FEDSPECSub Brand: Pass & SeymourType: Toggle SwitchVoltage Rating: 120/277 V
