PS TM870-LASL
MFG #TM870-LASL
UPC #78500724552
SKU #2102422
14 in Stock
Special Order Item. Minimum purchase may be required.
More available 10/03/2026
$14.98/EA
Product description

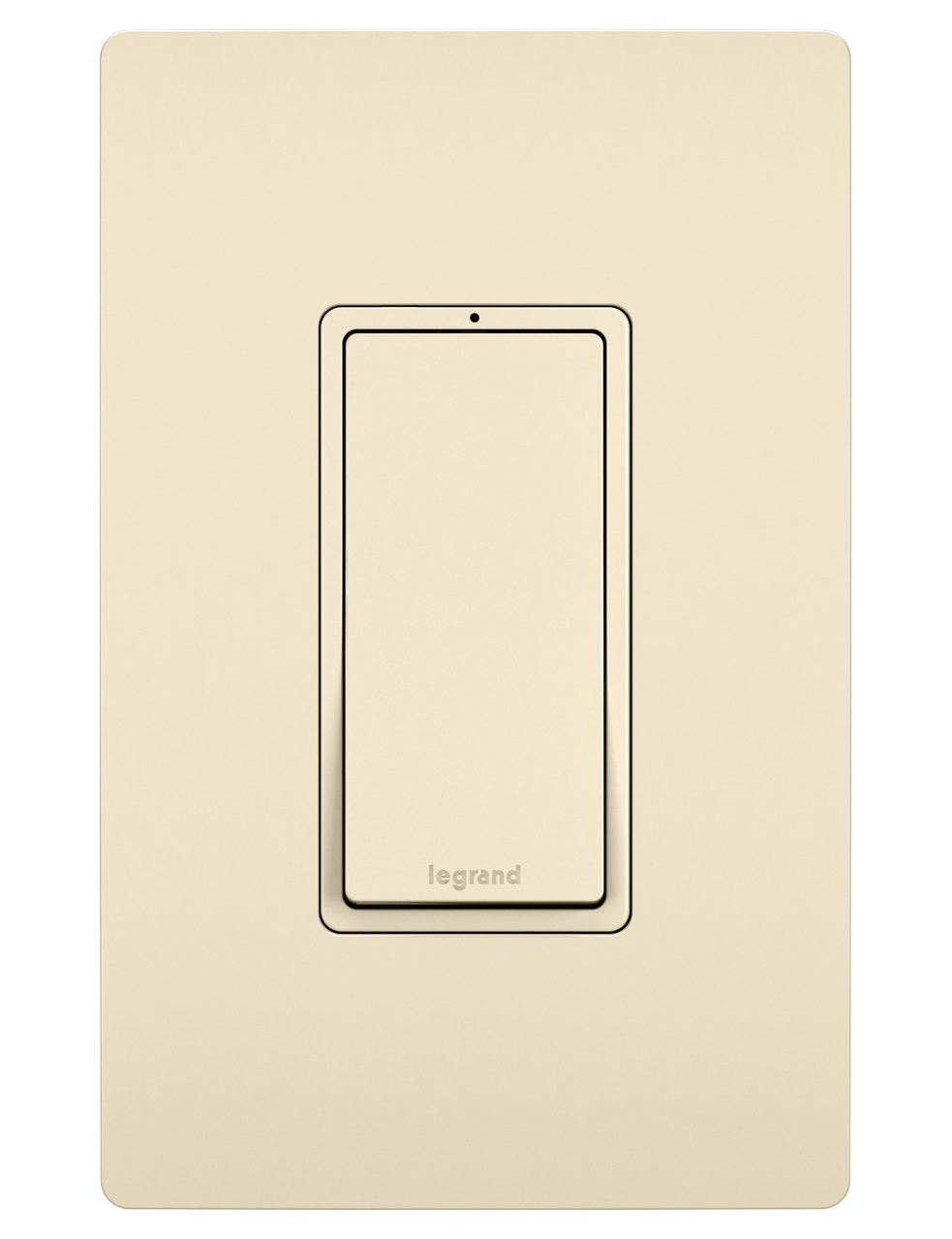

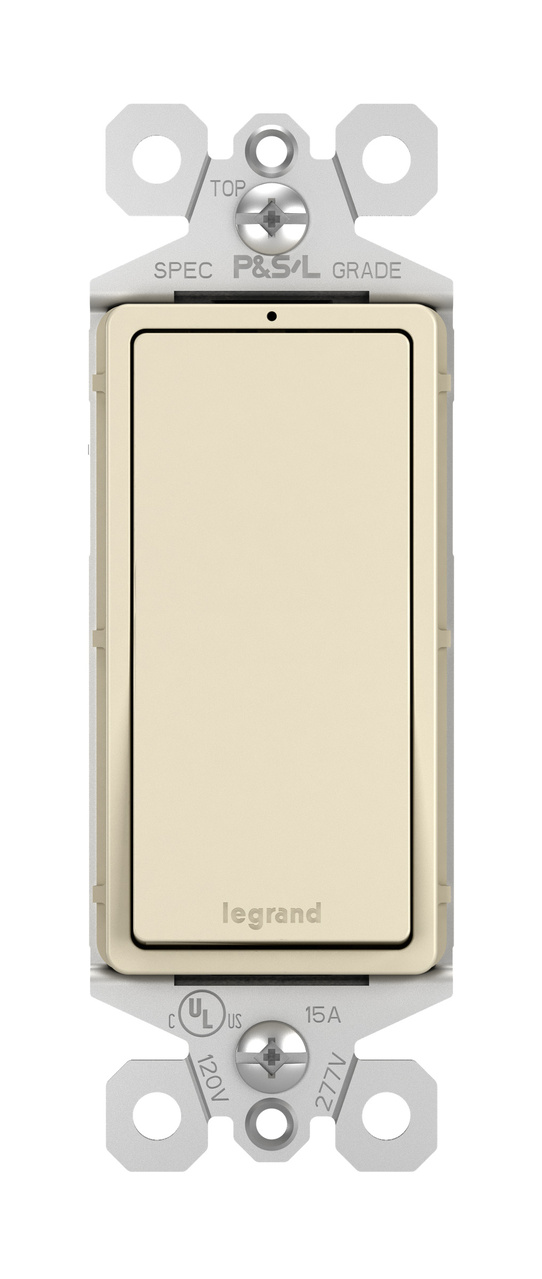

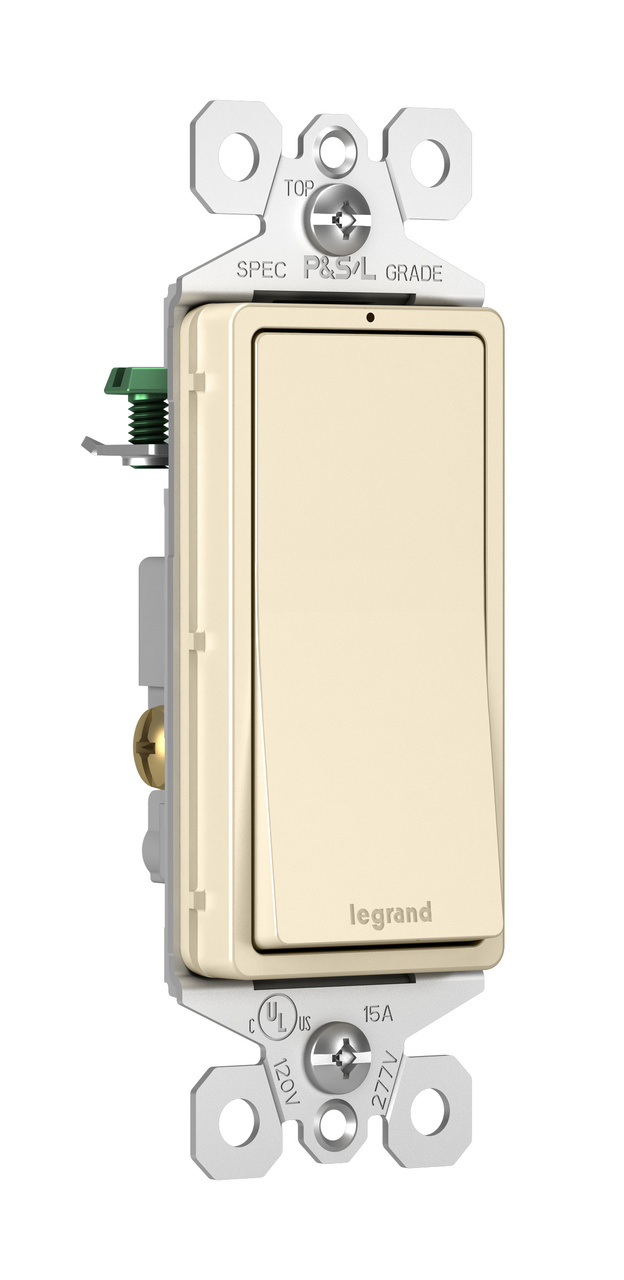

PS TM870-LASL DECOR SW 1P 15A 120V ILLUM W/GRD
Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Combination Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, Light Almond, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Combination Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, Light Almond, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
- Commercial and Residential Applications
- Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Combination Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, Light Almond, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
- Smooth paddle action
High impact resistant, thermoplastic construction
External screw pressure plate back and side wired
14 AWG push wire size
Narrow back body leaves more room for wires in the box
Extra long, through body strap eliminates floating installations and imperfect applications
Easy access green hex head ground screw
Tri-drive ground, terminal and mounting screws
Designer style satin finish rocker
Self-grounding models provide automatic ground clip
Corrosion resistant, plated steel strap, tamper resistant, heavy duty
Impact resistant nylon face
1-gang
Vertical orientation
1.8 in THK
Impact resistant nylon face, corrosion resistant, plated steel strap, tamper resistant, heavy duty
Accepts 12 and 14 AWG wire size
- SWITCH DECORATOR 120VAC 15A 1 PADDLE/RKR
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 111 Certified|NEMA WD-1/WD-6|UL 498/20
- Brand: Pass & Seymour LegrandApplication: Residential/CommercialColor: Light AlmondContact Rating: 15 Amp, 120/125 VACCountry of Origin: CNGang: 1Insulation: NoneMaterial: ThermoplasticMounting: WallNumber of Poles: Single PoleOrientation: VerticalSize: 5""Special Features: Impact resistant nylon face, corrosion-resistant, plated steel strap, tamper resistant, heavy-dutyStandard: UL, CULUS, UL 20Sub Brand: radiantSwitch Type: PaddleThickness: 1.8"Type: Switch
