SIEM FXD62B200
MFG #FXD62B200
UPC #78364321116
SKU #3987527
1 in Stock
Special Order Item. Minimum purchase may be required.
More available 08/14/2026
$2329.75/EA
Product description
SIEM FXD62B200 BREAKER FD 2P 200A 600V 22KA FX NL

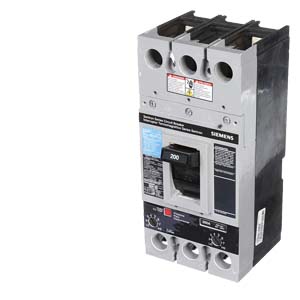

Siemens Sentronâ„¢ Molded Case Circuit Breaker, Type FXD6, 600 VAC, 200 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Non-Interchangeable/Thermal Magnetic Trip, 900 to 2000 A Trip, 2 Poles, 1 ph, Line/Load Connection, 40 deg C, 6.9 in L x 5.4 in W x 11.1 in H Dimensions
Siemens Sentronâ„¢ Molded Case Circuit Breaker, Type FXD6, 600 VAC, 200 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Non-Interchangeable/Thermal Magnetic Trip, 900 to 2000 A Trip, 2 Poles, 1 ph, Line/Load Connection, 40 deg C, 6.9 in L x 5.4 in W x 11.1 in H Dimensions
- For standard 40C breaker
- Siemens Sentronâ„¢ Molded Case Circuit Breaker, Type FXD6, 600 VAC, 200 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Non-Interchangeable/Thermal Magnetic Trip, 900 to 2000 A Trip, 2 Poles, 1 ph, Line/Load Connection, 40 deg C, 6.9 in L x 5.4 in W x 11.1 in H Dimensions
- BREAKER CKT CASE MLD 600VAC 200A 22KA
- Product Catalog Page(s)
Specification Sheet
- HACR Rated|UL 489
- Brand: Siemens Energy (ITE)Actuator: VaryingAmperage Rating: 200 AApplication: Standard 40C BreakerAuxiliary Contacts: N/AConnection: N/ACountry of Origin: MXEnclosure: VaryingEnvironmental Conditions: N/AFrame: FDFrequency Rating: 50/60 HzHeight: 11.1 inInterrupt Rating: 22KAICLength: 6.900Load Rating: N/AMaterial: N/ANumber of Poles: 2Operating Temperature: 40CSpecial Features: N/AStandard: HACR Rated|UL 489Sub Brand: SentronTrip Range: 900-2000Trip Type: Thermal-MagneticType: FXD6Voltage Rating: 600 VWidth: 5.400
