SWCOMP 234S
MFG #234S
UPC #75133833550
SKU #4393362
Product description

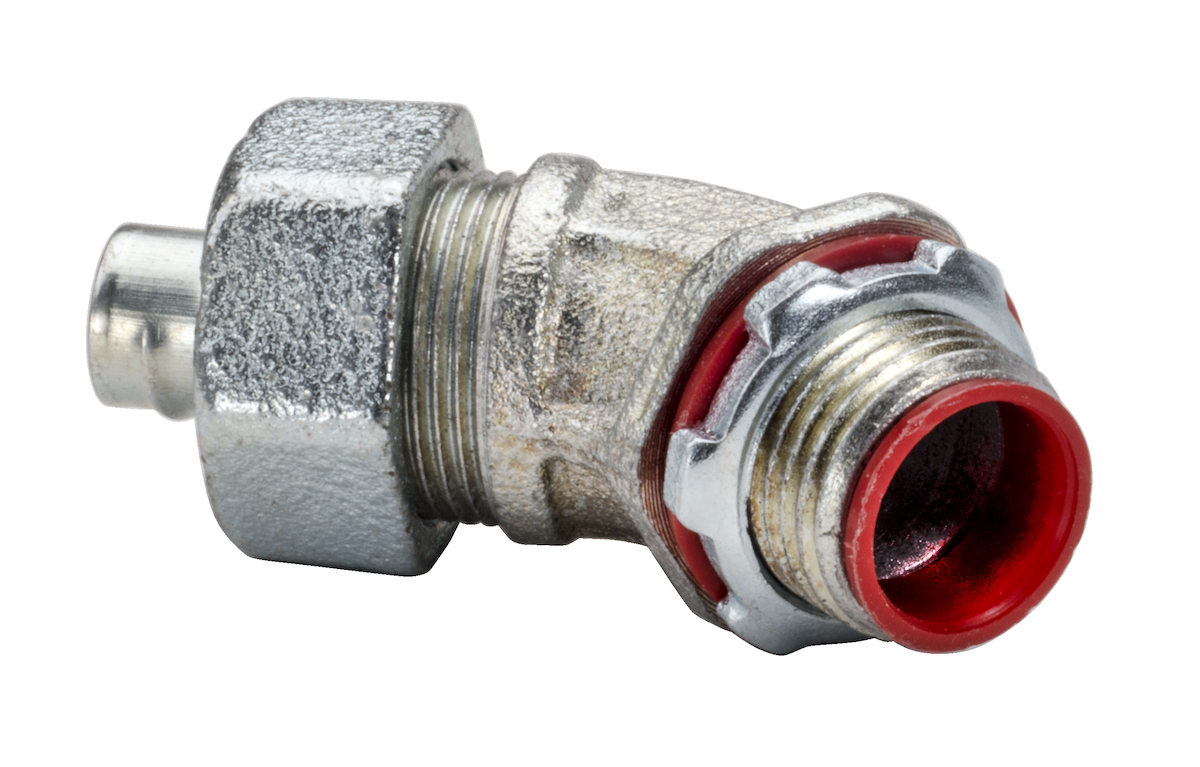

SWCOMP 234S 1-1/4" LT MALL CONNECTOR 2/20-PK
Southwire - Topaz Liquid Tight Connector, Component, 1-1/4 in, 45 deg, For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure, Malleable Iron, Zinc Plated, 2.44 in H
Southwire - Topaz Liquid Tight Connector, Component, 1-1/4 in, 45 deg, For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure, Malleable Iron, Zinc Plated, 2.44 in H
- Hazardous and Wet Locations
- Southwire - Topaz Liquid Tight Connector, Component, 1-1/4 in, 45 deg, For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure, Malleable Iron, Zinc Plated, 2.44 in H
- CONNECTOR LIQUIDTIGHT 1-1/4IN 45DEG MI
- Product Catalog Page(s)
Specification Sheet
- UL 514B|UL/cULus File No. E148716|CSA Certified|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D|NEC 501-4(b), 502-4(a) (2) Class I Div 2|Class II Div 1 2|Class III Div 1 2
- Brand: Southwire ComponentsConnection: ThreadedCountry of Origin: CHNEnvironmental Conditions: Hazardous and Wet LocationsFinish: Zinc PlatedInsulation: Insulated ThroatMaterial: Malleable IronSize: 1-1/4 inSpecial Features: Features: Liquid Tight, Rain Tight, Oil Tight, Concrete TightStandard: UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610DType: 45 DEG Angle Liquidtight Connector
