THHN 6THHN-CU-STR-BK-500
MFG #6THHN-CU-STR-BK-500
UPC #03288623153
SKU #74620
63500 in Stock
Stock Item
More available 12/20/2025
$1191.00 per M (1000) / FT
Product description

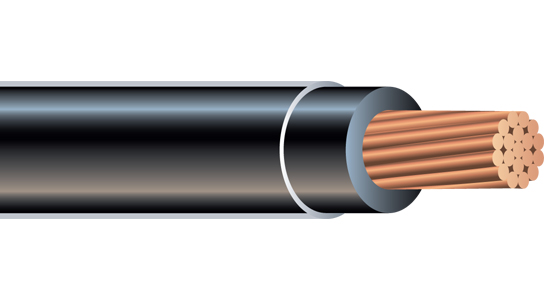

6THHN-CU-STR-BK-500 #6AWG THHN STRANDED BLACK COPPER CONDUCTOR 500' REEL
Southwire® SIMpull® Building Wire, Type THHN-2, 600 VAC, 75 A, 1 Conductor, Stranded Copper Conductor, 6 AWG Conductor, 249 mil OD, 500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Black Jacket, 90 deg C
Southwire® SIMpull® Building Wire, Type THHN-2, 600 VAC, 75 A, 1 Conductor, Stranded Copper Conductor, 6 AWG Conductor, 249 mil OD, 500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Black Jacket, 90 deg C
- Commercial Applications
- Southwire SIMpull Building Wire, Type THHN-2, 600 VAC, 75 A, 1 Conductor, Stranded Copper Conductor, 6 AWG Conductor, 249 mil OD, 500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Black Jacket, 90 deg C
- WIRE BLDG 600VAC 75A 1 STRD COPPER 6AWG
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|ASME Specified|Buy American Act Compliant|CSA Certified|Federal/SPecification A-A-59544|NCE Certified|NEC Certified|NFPA 70|NOM Certified|RoHS Compliant|UL File No. 1063|UL File No. 1581|UL File No. 83
- Brand: THHN Copper WireApplication: CommericalColor: BlackConductor Material: CopperConductor Size: 6Country of Origin: USAInsulation Material: PVCJacket Material: NylonLength: 500Number Of Conductors: 1Outside Diameter: 2490 MILSSpecial Features: No LubeStandard: ARRA Compliant|ASME Specified|Buy American Act Compliant|CSA Certified|Federal/SPecification A-A-59544|NCE Certified|NEC Certified|NFPA 70|NOM Certified|RoHS Compliant|UL File No. 1063|UL File No. 1581|UL File No. 83Strands: 19Sub Brand: SIMpull ®Type: THHN-2Voltage Rating: 600
