UTP 6133712
MFG #6133712
SKU #2967917
More available 07/16/2021
Product description
UTP 6133712 4/24 C5E+ GS5350 CMR BL 1M'PP

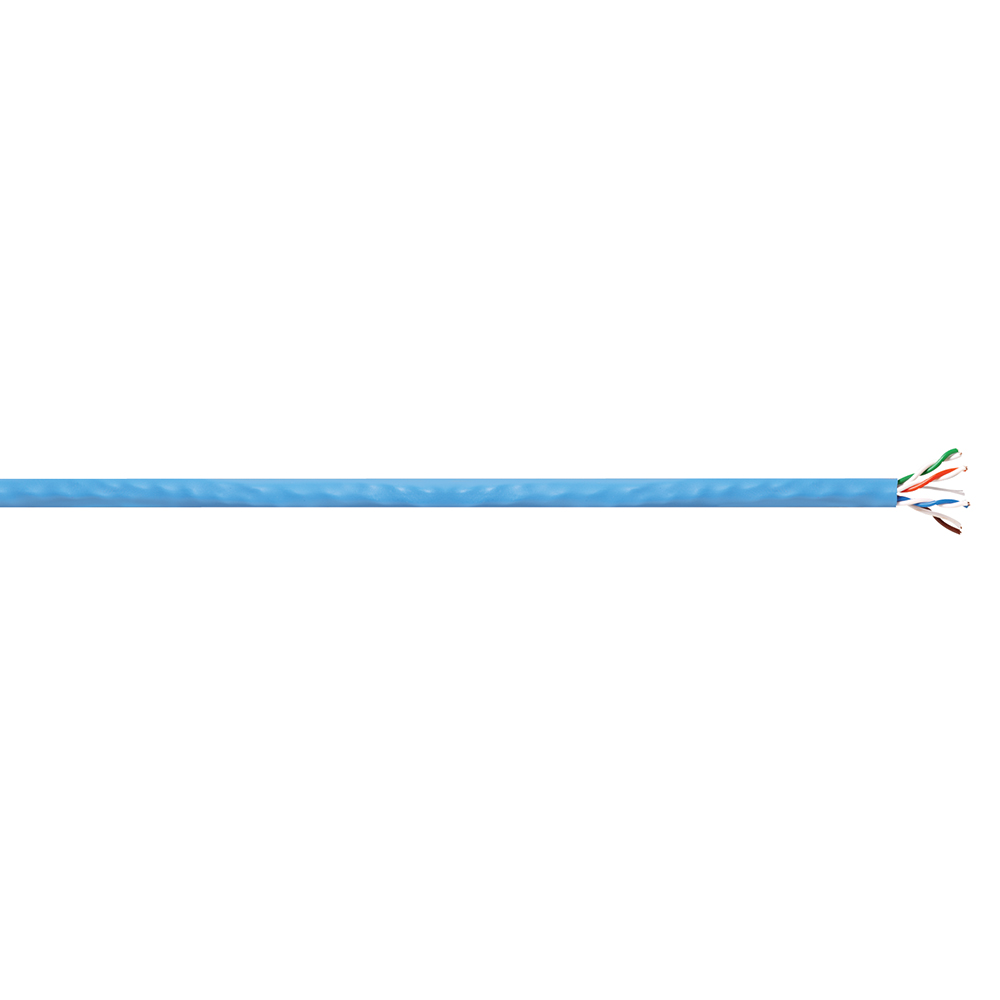

GenSPEED® 5350 Enhanced Cable, Type CMR UTP Cat 5e High Performance Riser Non-Plenum, Pull-Pac® II Packaging, 4 Pairs Conductors, Annealed Bare Solid Copper Conductor, 24 AWG Conductor, 0.2 in OD, 1000 ft Length, 8.9 Ohm Resistance, PVC Insulation, PVC Jacket, Blue Jacket, -20 to 79 deg C
GenSPEED® 5350 Enhanced Cable, Type CMR UTP Cat 5e High Performance Riser Non-Plenum, Pull-Pac® II Packaging, 4 Pairs Conductors, Annealed Bare Solid Copper Conductor, 24 AWG Conductor, 0.2 in OD, 1000 ft Length, 8.9 Ohm Resistance, PVC Insulation, PVC Jacket, Blue Jacket, -20 to 79 deg C
- IEEE 802.3:1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, 155 Mp/s, 622 Mp/s ATM, ANSI X3.263:100 Mb/s, IEEE 802.3af DTE Power (PoE), IEEE 802.3at for PoE Plus, CDDI, Token Ring, ATM, Broadband and Baseband Analog Video Applications
- GenSPEED® 5350 Enhanced Cable, Type CMR UTP Cat 5e High Performance Riser Non-Plenum, Pull-Pac® II Packaging, 4 Pairs Conductors, Annealed Bare Solid Copper Conductor, 24 AWG Conductor, 0.2 in OD, 1000 ft Length, 8.9 Ohm Resistance, PVC Insulation, PVC Jacket, Blue Jacket, -20 to 79 deg C
- CABLE NON-PLENUM 4-PAIR 24AWG 0.2IN PVC
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|UL 444|ETL Listed|ANSI/TIA-568-C.2 Specified|NEC®/CEC Type CMR|ANSI/TIA 862|ICEA S-90-661|IEC 11801 Ed. 2.0 Class D|UL 1666
- Brand: Unshielded Twisted PairApplication: EEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T 155 Mp/s, 622 Mp/s ATM ANSI X3.263: 100 Mb/s EEE 802.3af DTE Power (PoE) EEE 802.3at for PoE Plus Broadband and Baseband Analog VideoColor: BlueCountry of Origin: USALength: 1,000 ftMedia: 24Special Features: For applications that require optimal Cat 5e performance with flexibility for the future Performance guaranteed to 350 MHz -TRUMark® print legend contains footage markings from 1000' to 0' -ThirdParty verified for guaranteed performance Made inStandard: For applications that require optimal Cat 5e performance with flexibility for the future Performance guaranteed to 350 MHz TRUMark® print legend contains footage markings from 1000' to 0' ThirdParty verified for guaranteed performance MaSub Brand: GenSPEED® 5350Type: Category 5eWeight w/UM: 20
