RACO 232H
MFG #232H
UPC #05016950003
SKU #3731222
688 in Stock
Stock Item
More available 12/28/2025
$1045.60 per C (100) / EA
Product description

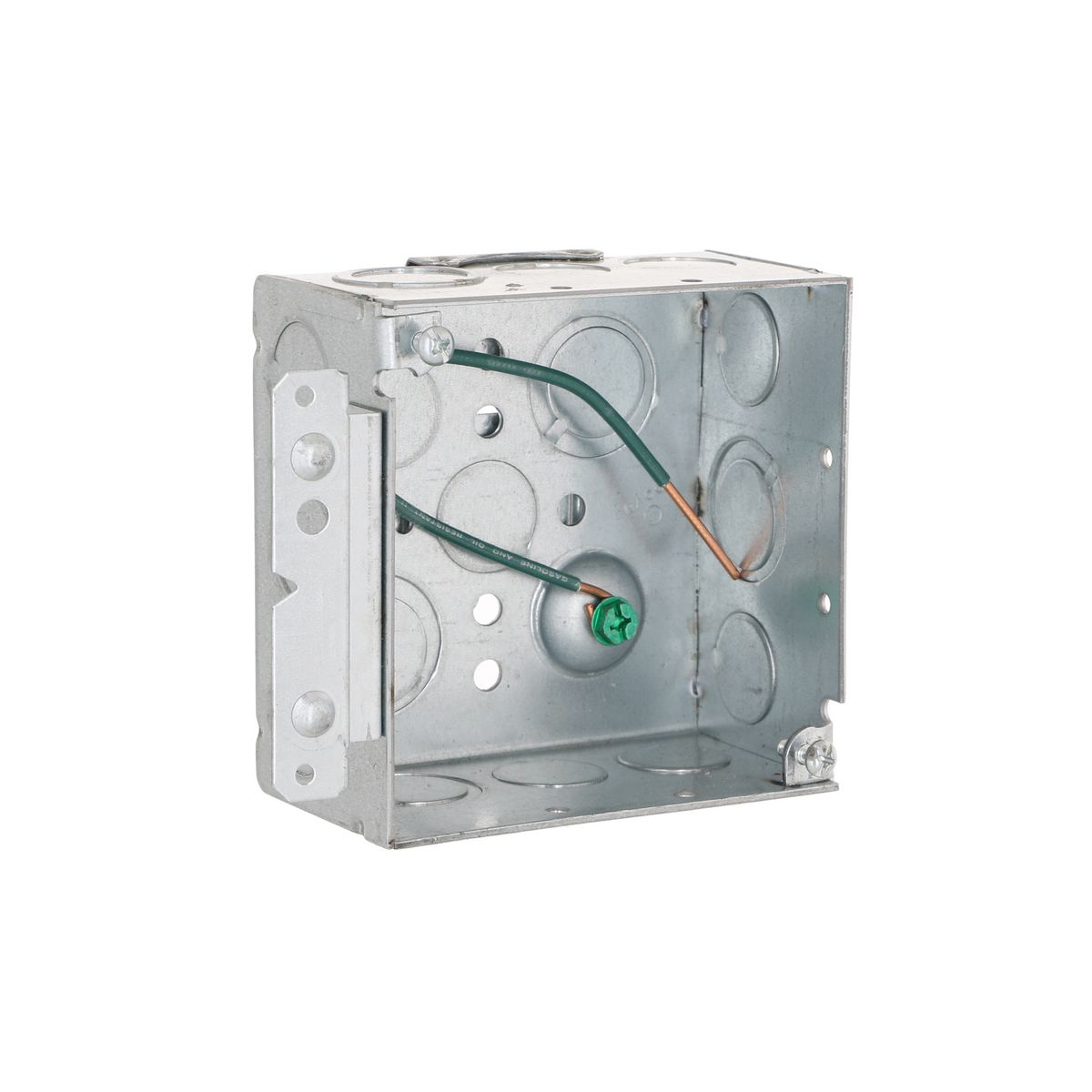

RACO 232H 4" SQUARE 2-1/8" DEEP CONDUIT BOX (10)1/2" & (6)TKO'S W/HM BRACKET W/8" PIGTAIL 30.3 CUBIC INCHES WELDED STEEL
RACO®, 232H, Square Box, 16 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions
RACO®, 232H, Square Box, 16 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions
- Electrical, Lighting Fixtures, Switches or Receptacles Applications
- RACO®, 232H, Square Box, 16 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions
- Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
BOX-LOC (MS) bracket box is a snap to install
Combination screw heads provide for faster installation
TKO knockouts offer greater flexibility with RACO® patented combination 1/2 in and 3/4 in knockout
UBS support - welded to box, preset bend points to work with wall thickness 2-1/2 to 6 in
HM type bracket for wood/metal studs
Flush bracket setback
Raised ground
Place the bracket on the open side of the stud first
Slots in the bracket engage the lip of the stud and actually crimp it as you press the bracket on the stud, quickly locking it in place
- SQ BX STEEL 30.3CU-IN 16
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL File No. E195978
- Brand: Raco Hubbell
