MFG #2RBS14X
SKU #72024
$405.20 per C (100)Â /Â EA
Product description

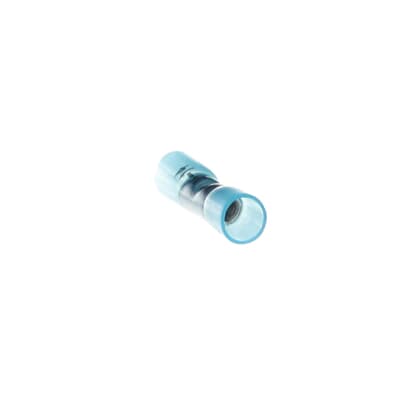

TB 2RBS14X BUTT SPLICE #16-#14AWG SELF INSULATING HEAT SHRINKABLE BLUE 50/BX
Sta-Kon Butt Splice Connector, Heat Shrinkable Insulated, Series: RB Series, 16 to 14 AWG Conductor, 1-1/2 in Length, 600 VAC, Specifications: 0.2 in Maximum Insulation, 150 deg C, Copper, Blue, Electro-TiN Plated, 0.26 in W Dimensions
Sta-Kon Butt Splice Connector, Heat Shrinkable Insulated, Series: RB Series, 16 to 14 AWG Conductor, 1-1/2 in Length, 600 VAC, Specifications: 0.2 in Maximum Insulation, 150 deg C, Copper, Blue, Electro-TiN Plated, 0.26 in W Dimensions
- Sta-Kon Butt Splice Connector, Heat Shrinkable Insulated, Series: RB Series, 16 to 14 AWG Conductor, 1-1/2 in Length, 600 VAC, Specifications: 0.2 in Maximum Insulation, 150 deg C, Copper, Blue, Electro-TiN Plated, 0.26 in W Dimensions
- CONNECTOR SPLC BUTT 16 TO 14AWG 1-1/2IN
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL 94 V-0 Flammability Rating|UL Listed
- Brand:Â Thomas & BettsColor:Â BlueConductor Range:Â 16-14Country of Origin:Â USFinish:Â Electro -Tin PlatedInsulation:Â Heat-Shrinkable PolyolefinMaterial:Â CopperSpecial Features:Â Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposureTemperature Rating:Â 150 CType:Â Heat Shrinkable Butt SpliceVoltage Rating:Â 600 VIDW2 Image1 URL:Â https://ideadigitalasset.com/DAMRoot/Original/12195/12055_SQBN5U6YHVM17ZP0.jpg
