TB 10RC-8F
MFG #10RC-8F
UPC #78621080039
SKU #71580
Product description

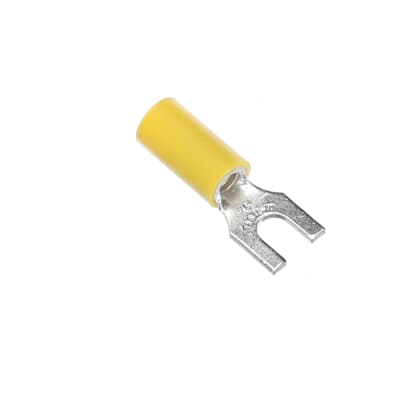

TB 10RC-8F TERMINAL FORK #12-#10AWG VINYL INSULATED #8 BOLT HOLE YELLOW 50/BK
Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
- Sta-Kon Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
- TERMINAL FORK 12 TO 10AWG 1.09IN COPPER
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809
- Brand: Thomas & BettsColor: YellowCountry of Origin: USMaterial: CopperSpecial Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-codedStandard: UL E9809 / UL E9809Type: Vinyl Insulated Fork TerminalVoltage Rating: 600 VWire Size: 12-10 AWG
