TB 18RA-8F
MFG #18RA-8F
SKU #71820
$139.60 per C (100) / EA
Product description

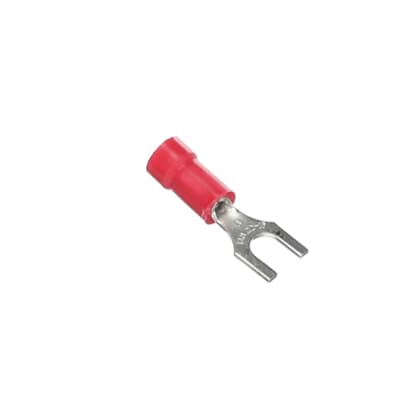

TB 18RA-8F TERMINAL FORK #22-#16AWG VINYL INSULATED #8 BOLT HOLE RED 100/PK
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
- Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
- TERMINAL FORK 22 TO 16AWG 0.97IN COPPER
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809
- Brand: Thomas & BettsColor: RedCountry of Origin: USMaterial: COPPERSpecial Features: These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-codedStandard: UL E9809Type: Vinyl Insulated Fork TerminalVoltage Rating: 600 VWire Size: 22-16 AWGIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12194/12055_1ZH8QUT3MFWSKALR.jpg
