TB GUV5825
MFG #GUV5825
SKU #1575908
$7686.50 per C (100)Â /Â EA
46 in Stock. More available 05/17/2024
Stock Item
Product description

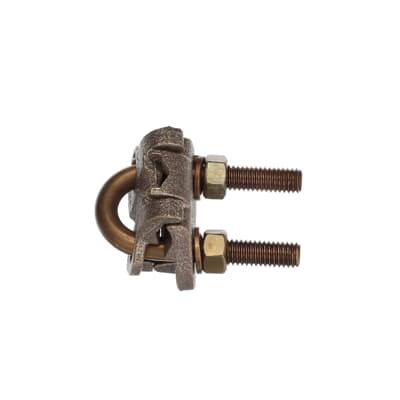

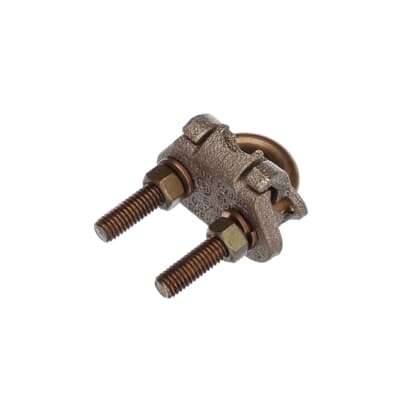

TB GUV5825 U-BOLT GROUND CLAMP WIRE RANGE #2/0-#250AWG 5/8"-3/4" ROD SIZE 3/8" PIPE SIZE COPPER DIRECT BURIAL
Blackburn E-Z Ground U-Bolt Grounding Clamp, Type GUV Non-Insulated, 3/8 in Pipe, 5/8 to 3/4 in Rod, Copper/Copper Clad Steel Conductor, 2/0 AWG to 250 kcmil Conductor, Copper, 2-13/16 in L x 2-1/4 in W x 1-9/16 in D
Blackburn E-Z Ground U-Bolt Grounding Clamp, Type GUV Non-Insulated, 3/8 in Pipe, 5/8 to 3/4 in Rod, Copper/Copper Clad Steel Conductor, 2/0 AWG to 250 kcmil Conductor, Copper, 2-13/16 in L x 2-1/4 in W x 1-9/16 in D
- For connecting copper or copper clad steel grounding conductor to ground rod or pipe
- Blackburn E-Z Ground U-Bolt Grounding Clamp, Type GUV Non-Insulated, 3/8 in Pipe, 5/8 to 3/4 in Rod, Copper/Copper Clad Steel Conductor, 2/0 AWG to 250 kcmil Conductor, Copper, 2-13/16 in L x 2-1/4 in W x 1-9/16 in D
- Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
All components cast or forged from copper alloy
Listed for direct burial in earth or concrete
GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
- CLAMP GROUNDING U-BOLT 5/8TO3/4IN
- Product Catalog Page(s)
Specification Sheet
- CSA 12798|DB Rated|UL File No. E3060
- Brand:Â Thomas & BettsConductor Material:Â CopperConductor Range (Main/Primary):Â 2/0 - 250Conductor Size:Â 2/0 AWG - 250kcmilCountry of Origin:Â INInsulation:Â NoLength:Â 2-13/16 inMaterial:Â CopperSpecial Features:Â Excellent for connecting copper or copper-clad steel grounding conductor to ground rod or pipe. Specially designed spacer provides proper alignment between cable and elctrode and affords more positive contact areaStandard:Â UL E3060, CSA 12798Type:Â Ground ClampIDW2 Image1 URL:Â https://ideadigitalasset.com/DAMRoot/Original/12327/12055_P78BEOXA1TV0SL3D.jpg
