TB ADR25-32
MFG #ADR25-32
UPC #78378661013
SKU #1554306
22 in Stock
Stock Item
More available 02/20/2026
$35.04/EA
Product description

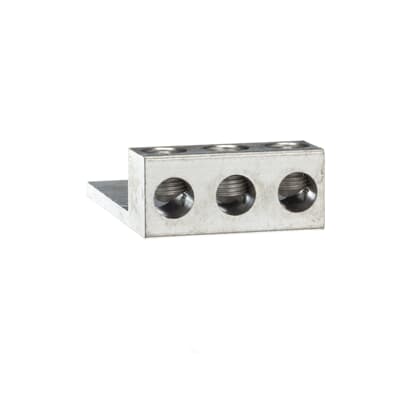

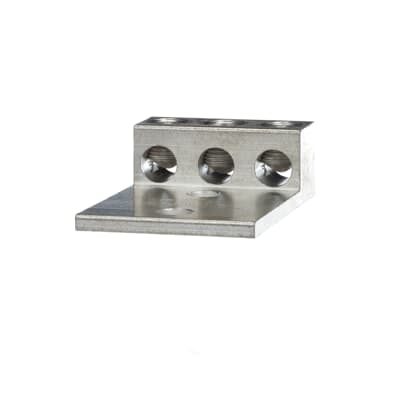

TB ADR25-32 250MCM-6AWG 3-CONDUCTOR CU/AL LUG TWO MOUNTING HOLE 1/2" BOLT
Blackburn® ADR25-32 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3-1/16 in L x 2-13/16 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 3-Conductor, 31/32 in Hole Spacing, Aluminum, Tin Plated, 4-3/16 in L x 2-13/16 in W x 1-1/4 in H Dimensions
Blackburn® ADR25-32 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3-1/16 in L x 2-13/16 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 3-Conductor, 31/32 in Hole Spacing, Aluminum, Tin Plated, 4-3/16 in L x 2-13/16 in W x 1-1/4 in H Dimensions
- Blackburn® ADR25-32 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3-1/16 in L x 2-13/16 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 3-Conductor, 31/32 in Hole Spacing, Aluminum, Tin Plated, 4-3/16 in L x 2-13/16 in W x 1-1/4 in H Dimensions
- NEMA spacing 1-3/4 in centers
Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
Extra aluminum lug
Tin plated for low contact resistance
2 stud of 1/2 in
- CONNECTOR MECH AL/STRD COPPER 1/2IN 2 AL
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL File No. E9809
- Brand: Thomas & BettsConductor Range (Main/Primary): 6-250Country of Origin: MXFinish: Tin-PlatedMaterial: AluminumNumber Of Conductors: 3Number Of Mounting Holes: 2Special Features: Easy Installation - no special tools requiredStandard: CSA Certified|UL File No. E9809Type: Dual-Rated Mechanical Connector
