TB ADR60-22D
MFG #ADR60-22D
SKU #1610275
$3569.20 per C (100)Â /Â EA
26 available today. Please contact inside sales for delivery information.
Stock Item
Product description
TB ADR60-22D (2)CONDUCTOR #2-#600MCM (2)1/2" BOLT HOLES MECHANICAL LUG ALUMINUM/ COPPER

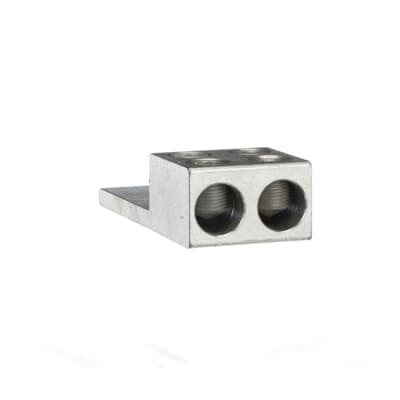

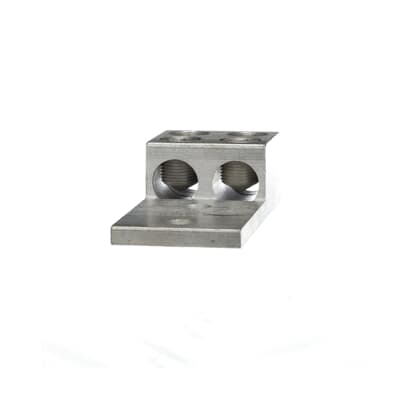

Blackburn® Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 1-13/16 in L x 2-3/4 in W x 3/8 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 1-7/16 in Hole Spacing, Aluminum, Tin Coated, 5-5/16 in L x 2-3/4 in W x 1-1/2 in H Dimensions
Blackburn® Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 1-13/16 in L x 2-3/4 in W x 3/8 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 1-7/16 in Hole Spacing, Aluminum, Tin Coated, 5-5/16 in L x 2-3/4 in W x 1-1/2 in H Dimensions
- Blackburn® Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 1-13/16 in L x 2-3/4 in W x 3/8 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 1-7/16 in Hole Spacing, Aluminum, Tin Coated, 5-5/16 in L x 2-3/4 in W x 1-1/2 in H Dimensions
- NEMA spacing 1-3/4 in centers
Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
Extra aluminum lug
Tin plated for low contact resistance
2 stud of 1/2 in
- CONNECTOR MECH AL/STRD COPPER 1/2IN 2 AL
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL File No. E9809
- Brand:Â Thomas & BettsConductor Range (Main/Primary):Â 2-600Country of Origin:Â MXFinish:Â Tin-PlatedMaterial:Â AluminumMounting Hole Spacing:Â 1/2 inNumber Of Conductors:Â 2Number Of Mounting Holes:Â 2Special Features:Â Easy Installation - no special tools requiredStandard:Â UL E9809Type:Â Dual-Rated Mechanical ConnectorIDW2 Image1 URL:Â https://ideadigitalasset.com/DAMRoot/Original/12196/12055_O65HIEBXJKWV9PRU.jpg
