TB APS04
MFG #APS04
UPC #78378620141
SKU #3748933
46 in Stock
Stock Item
More available 12/19/2025
$1813.80 per C (100) / EA
Product description

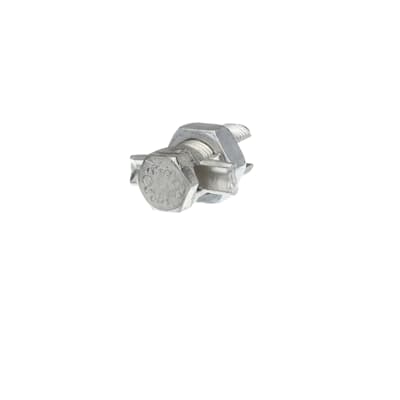

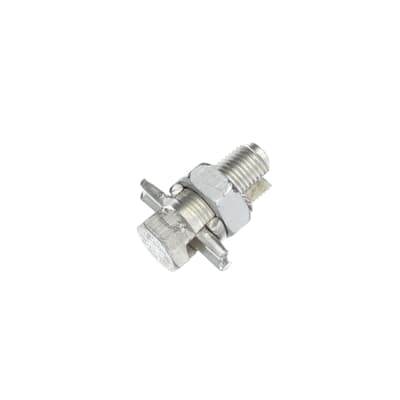

TB APS04 SPLIT BOLT CONNECTOR #10-#4AWG DUAL RATED
Blackburn® APS04 Split Bolt Connector, Type APS Dual Rated, Stranded Aluminum/Copper Conductor, 10 to 4 AWG Conductor, 0.5937 x 1.48 in Bolt, 600 VAC, Specifications: 0.27 in Split, 25/32 in Hex Nut, 1-1/4 in W Space Bar, 90 deg C, Aluminum, Electro-Plated Tin, Metallic
Blackburn® APS04 Split Bolt Connector, Type APS Dual Rated, Stranded Aluminum/Copper Conductor, 10 to 4 AWG Conductor, 0.5937 x 1.48 in Bolt, 600 VAC, Specifications: 0.27 in Split, 25/32 in Hex Nut, 1-1/4 in W Space Bar, 90 deg C, Aluminum, Electro-Plated Tin, Metallic
- For splicing, tapping or terminating conductors in power and grounding electrical connection
- Blackburn APS04 Split Bolt Connector, Type APS Dual Rated, Stranded Aluminum/Copper Conductor, 10 to 4 AWG Conductor, 0.5937 x 1.48 in Bolt, 600 VAC, Specifications: 0.27 in Split, 25/32 in Hex Nut, 1-1/4 in W Space Bar, 90 deg C, Aluminum, Electro-Plated Tin, Metallic
- Aluminum dual rated split-bolt connector for use on copper, aluminum conductors
Tin plated finish provides resistance to corrosion
100 Pieces/Pack
- CONNECTOR BOLT SPLIT STRD AL/COPPER AL
- Product Catalog Page(s)
Specification Sheet
- UL File No. E9809|CSA Certified
- Brand: Thomas & BettsApplication: Splicing, tapping or terminating conductors in power and grounding electrical connectionConductor Range (Main/Primary): 4-10 AWGConductor Range (Tap/Secondary): 4-10 AWGCountry of Origin: MXFinish: Electro Tin-PlatedMaterial: AluminumSpecial Features: Installs with standard wrenchesStandard: UL File No. E9809|CSA CertifiedType: Split-Bolt
