MFG #71A6572-001
SKU #20295
$332.47 per EA (1)Â /Â EA
Product description

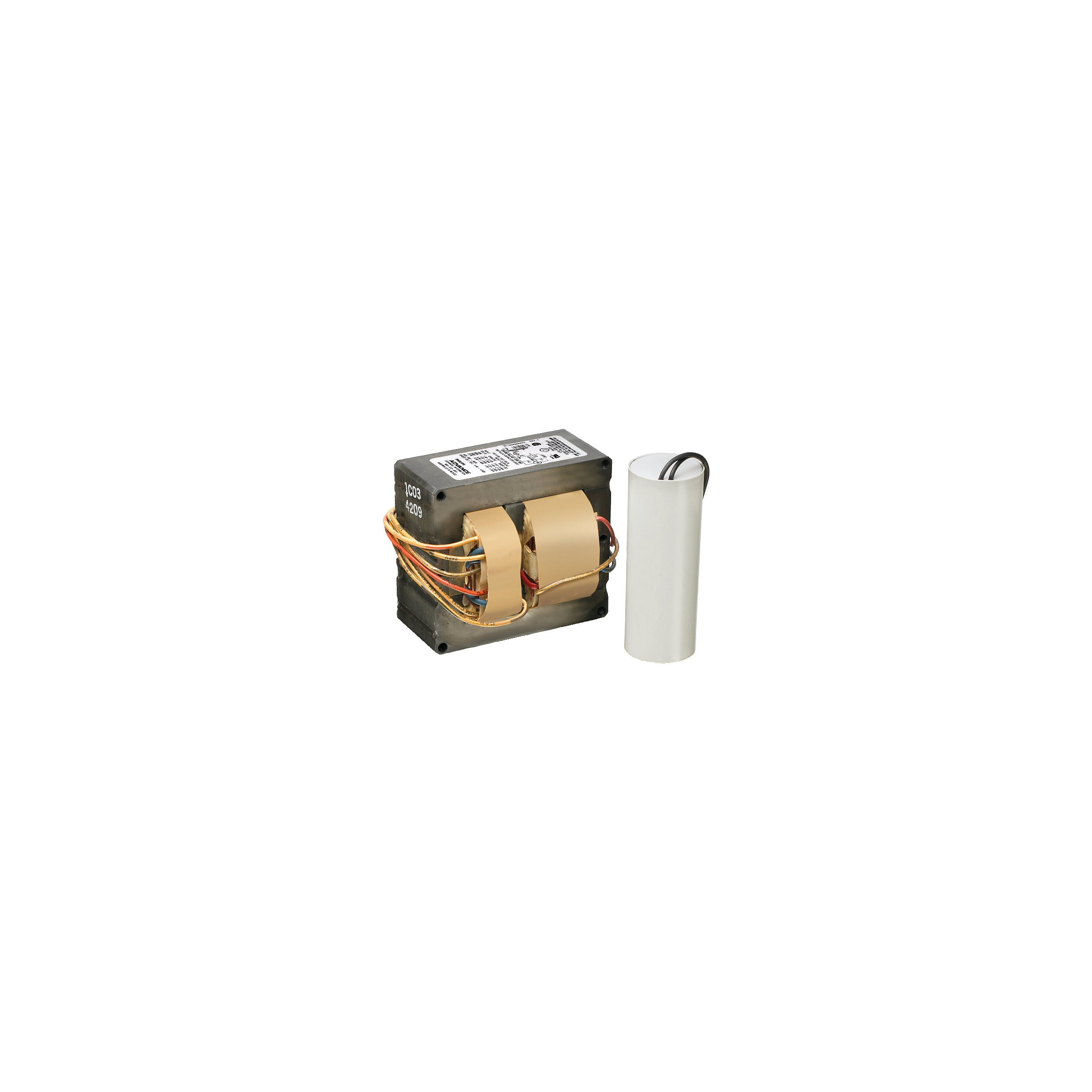

ADV 71A6572-001 1000WATT 120/208/240/277VAC PROBE START METAL HALIDE HID BALLAST CORE & COIL ANSI CODE M47
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 1000 W Lamp, 1080 W Wattage, 120/208/240/277 VAC, 9/5.2/4.5/3.9 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6572 Lamp Base, Ballast Factor: 1, ANSI M47 Ballast Grade, 6 in L x 5 in W x 4-1/4 in H Dimensions
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 1000 W Lamp, 1080 W Wattage, 120/208/240/277 VAC, 9/5.2/4.5/3.9 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6572 Lamp Base, Ballast Factor: 1, ANSI M47 Ballast Grade, 6 in L x 5 in W x 4-1/4 in H Dimensions
- Lighting Luminaire Component and Outdoor Applications
- Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 1000 W Lamp, 1080 W Wattage, 120/208/240/277 VAC, 9/5.2/4.5/3.9 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6572 Lamp Base, Ballast Factor: 1, ANSI M47 Ballast Grade, 6 in L x 5 in W x 4-1/4 in H Dimensions
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
24 Mfd capacitor
4.5/2.7/2.3/2.2 A input current (open circuit), 7.8/4/3.7/3.2 A input current (starting), 5.6 to 8.6/3.2 to 4.8/2.8 to 4.3/2.4 to 3.6 A input current (short circuit), 9/5.2/4.5/3.9 A input current (nominal)
4-1/4 x 6 in (2 coil) core
1.75 in Dia x 3.9 in H oval capacitor
Ballast replacement kit with oil filled capacitor
UL insulation class H of 180 deg C
- BALLAST HID HID MET HALIDE 1000W P
- Product Catalog Page(s)
Specification Sheet
- UL Recognized|CSA Certified|UL Insulation Class H
- Brand:Â Advance Flourescent & HID BallastANSI Code:Â M47Application:Â Lighting Luminaire ComponentBallast Factor:Â 1Country of Origin:Â CNDimmable:Â NoFrequency Rating:Â 60 HzHeight:Â 0.2 inLamp Type:Â Metal HalideLength:Â 0.24 INNumber of Lamps:Â 1Power Factor:Â 0.90Standard:Â ULR;CSA certificate;RoHS CompliantStart Type:Â PROBEThermal Protection:Â Class PType:Â Magnetic HIDVoltage Rating:Â 120/208/240/277 VWattage:Â 1000 WWidth:Â 1.69 IN
