TB 02500220
MFG #02500220
UPC #78378665772
SKU #3995095
Product description

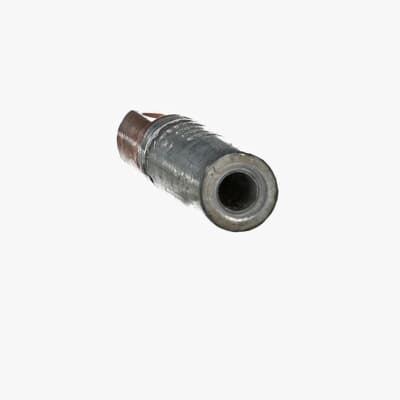

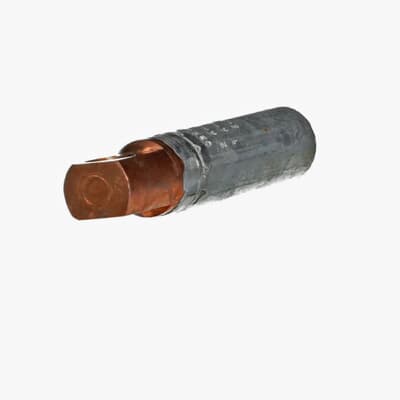

ELAST 02500220 #2AWG AL/CU LONG BI-METAL CONTACT 15KV 200AMP LOADBREAK FOR USE W/ 165/166LR -275/276LR -375/376LR -156LR ELASTIMOLD ELBOWS ELASTIMOLD ELBOWS Factory Non-Stock, non-returnable
Elastimold® Loadbreak Compression Lug, Long, 15/25/35 kV, 200 A, 2 AWG, 1 AWG Conductor, Crimped, 1-Hole, 3/8 in Stud, Aluminum/Copper, Bare, Bare, 0.63 in Dia x 2.88 in H
Elastimold® Loadbreak Compression Lug, Long, 15/25/35 kV, 200 A, 2 AWG, 1 AWG Conductor, Crimped, 1-Hole, 3/8 in Stud, Aluminum/Copper, Bare, Bare, 0.63 in Dia x 2.88 in H
- For 165/166LR, 273/274LR, 375/376LR and 156LR elbows on aluminum or copper conductors
- Elastimold® Loadbreak Compression Lug, Long, 15/25/35 kV, 200 A, 2 AWG, 1 AWG Conductor, Crimped, 1-Hole, 3/8 in Stud, Aluminum/Copper, Bare, Bare, 0.63 in Dia x 2.88 in H
- LUG COMPRESSION LOADBREAK 15/25/35KV
- Product Catalog Page(s)
Specification Sheet
- IEEE 386
- Brand: Thomas & BettsAmperage Rating: 200 AApplication: 200-Amp Loadbreak Connectors and Accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems.Cable Size: #2 STR AWG , #2 COMPR AWG , #1 SOL AWG , #1 COMPT AWGColor: BareConnection: CompressionCountry of Origin: USEnvironmental Conditions: Must be Protected/installed into Elbow Connector, Repair Elbow Connector or Replacement ElbowInsulation: NoneMaterial: Bi-Metal (Aluminum and Copper)Number of Holes: 1Standard: IEEE 386 / IEEE 386Stud Size: 3/8 InchTemperature Rating: -40 to 65 CType: Bi-Metal Contact Compression LugVoltage Rating: 15 to 35 kV
