TB 10RC-8
MFG #10RC-8
UPC #78621080038
SKU #71579
Product description

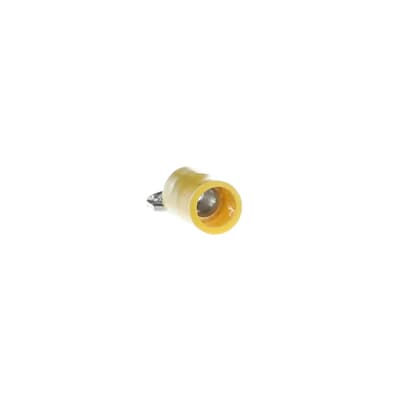

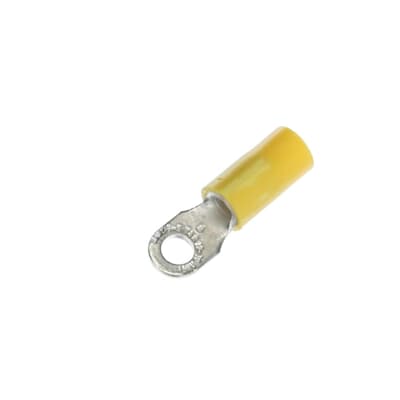

TB 10RC-8 TERMINAL RING #12-#10AWG VINYL INSULATED #8 BOLT HOLE YELLOW 50/BK
Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Max Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Yellow
Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Max Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Yellow
- For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
- Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Max Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Yellow
- TERMINAL RING 12 TO 10AWG 1.06IN COPPER
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL Listed|UL 94 V-0 Flammability Rating
- Brand: Thomas & BettsColor: YellowCountry of Origin: USMaterial: COPPERSpecial Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out valueStandard: UL E9809 / UL E9809Type: Vinyl Insulated Ring TerminalVoltage Rating: 600 VWire Size: 12-10 AWG
