TB 14RB-14
MFG #14RB-14
UPC #78621080073
SKU #71727
Product description

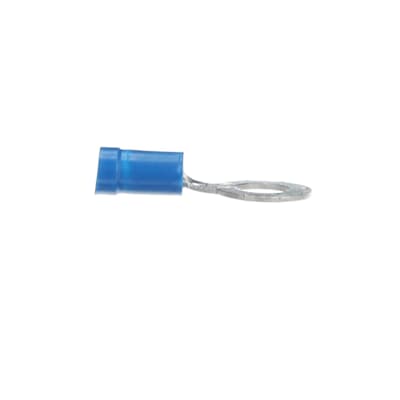

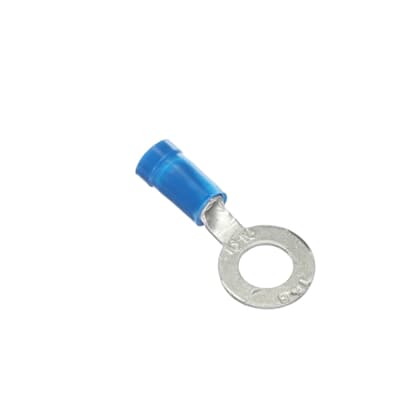

TB 14RB-14 TERMINAL RING #18-#14AWG VINYL INSULATED 1/4" BOLT HOLE BLUE 100/BK
Sta-Kon® Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.03 in THK Tongue, 600 VAC, 0.17 in Dia Maximum Insulation, 0.38 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Blue
Sta-Kon® Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.03 in THK Tongue, 600 VAC, 0.17 in Dia Maximum Insulation, 0.38 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Blue
- For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
- Sta-Kon® Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.03 in THK Tongue, 600 VAC, 0.17 in Dia Maximum Insulation, 0.38 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Blue
- TERMINAL RING 18 TO 14AWG 1.14IN COPPER
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL Listed|UL File No. E9809|UL 94 V-0 Flammability Rated
- Brand: Thomas & BettsColor: BlueCountry of Origin: USMaterial: CopperSpecial Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out valueStandard: UL E9809 / UL E9809Type: Vinyl Insulated Ring TerminalVoltage Rating: 600 VWire Size: 18-14 AWG
