TB FS116B
MFG #FS116B
SKU #251440
$58.14 per EA (1) / EA
Product description

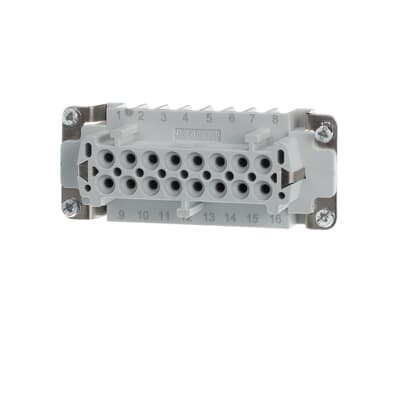

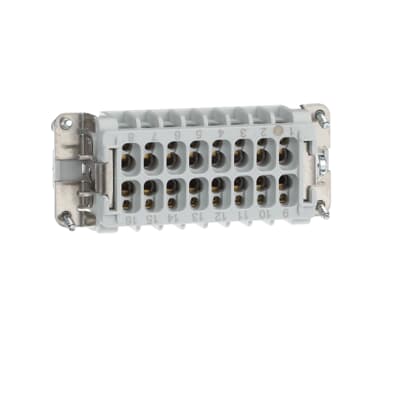

TB FS116B POS-E-KON FEMALE SLEEVE W/16 #20-#14AWG CONTACTS + GROUND 16 B SERIES
Pos-E-Kon Terminal Insert, Standard, Series: B Series, 16 Positions, 20 to 14 AWG Wire, Female Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Glass Filled Thermoplastic
Pos-E-Kon Terminal Insert, Standard, Series: B Series, 16 Positions, 20 to 14 AWG Wire, Female Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Glass Filled Thermoplastic
- For panel base applications
- Pos-E-Kon Terminal Insert, Standard, Series: B Series, 16 Positions, 20 to 14 AWG Wire, Female Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Glass Filled Thermoplastic
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
Allows single access direction panel build wiring and easy terminal ID for service and testing
Standard wire protection saddles prevent cutting of strands during assembly
Standard size screw terminal
Use small blade screwdriver to push wire entry tab in for easy contact removal
- INSERT TERM 16 20 TO 14AWG FEM SCR 16 A
- Product Catalog Page(s)
Specification Sheet
- CSA 70013|UL 94 V-0 Flammability Rated
- Brand: Thomas & BettsAmperage Rating: 16 AmpsApplication: For use with B seriesCountry of Origin: DEMaterial: Glass-filled ThermoplasticStandard: CSA 70013Type: Terminal Inserts-FemaleVoltage Rating: 600 VACWire Size: 20-14 AWGIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12199/12055_QYZVJCF2OEUI4SPB.jpg
