TB 10HPS
MFG #10HPS
UPC #78378620046
SKU #1569085
76 in Stock
Stock Item
More available 02/13/2026
$24.00/EA
Product description

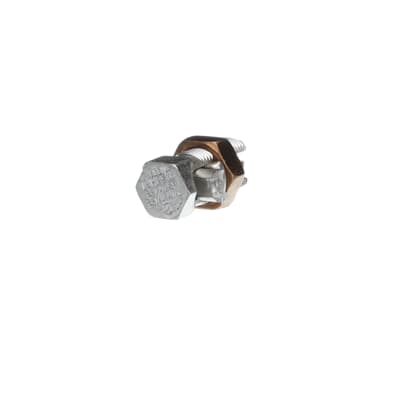

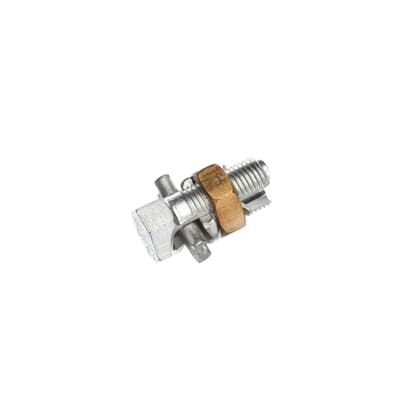

TB 10HPS #6-#1/0AWG SPLIT BOLT CONNECTOR ALUMINUM/COPPER
Blackburn® Split-Bolt Connector, Type HPS, ACSR/Aluminium/Solid/Stranded Copper Conductor, 1/0 to 6 AWG Conductor, 3/4 in Bolt, Copper Alloy, Electro-Tin Plated, Metallic, 1-13/16 in H x 15/16 in W x 15/16 in D
Blackburn® Split-Bolt Connector, Type HPS, ACSR/Aluminium/Solid/Stranded Copper Conductor, 1/0 to 6 AWG Conductor, 3/4 in Bolt, Copper Alloy, Electro-Tin Plated, Metallic, 1-13/16 in H x 15/16 in W x 15/16 in D
- For splicing, tapping or terminating conductors in power and grounding electrical connection
- Blackburn® Split-Bolt Connector, Type HPS, ACSR/Aluminium/Solid/Stranded Copper Conductor, 1/0 to 6 AWG Conductor, 3/4 in Bolt, Copper Alloy, Electro-Tin Plated, Metallic, 1-13/16 in H x 15/16 in W x 15/16 in D
- Contoured spacer of electrolytic copper up through 4/0, bronze alloy for 350 kcmil and above, all tin plated
Blackburn Contax® paste recommended when used on aluminum conductor
1/0 to 6 stranded AWG for equal main and tap, 6 AWG solid for minimum tap with one maximum main, 1 to 6 AWG equal main and tap ACSR
- CONNECTOR SPLIT-BOLT 3/4IN COPPER ALY
- Product Catalog Page(s)
Specification Sheet
- UL E9809|CSA Certified
- Brand: Thomas & BettsApplication: Splicing, tapping or terminating conductors in power and grounding electrical connectionCountry of Origin: MXFinish: Tin-PlatedInsulation: NoneMaterial: Copper AlloySpecial Features: Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copperStandard: UL E9809Type: Split-Bolt
