TB 1455-80
MFG #1455-80
UPC #78621005189
SKU #4172408
Product description

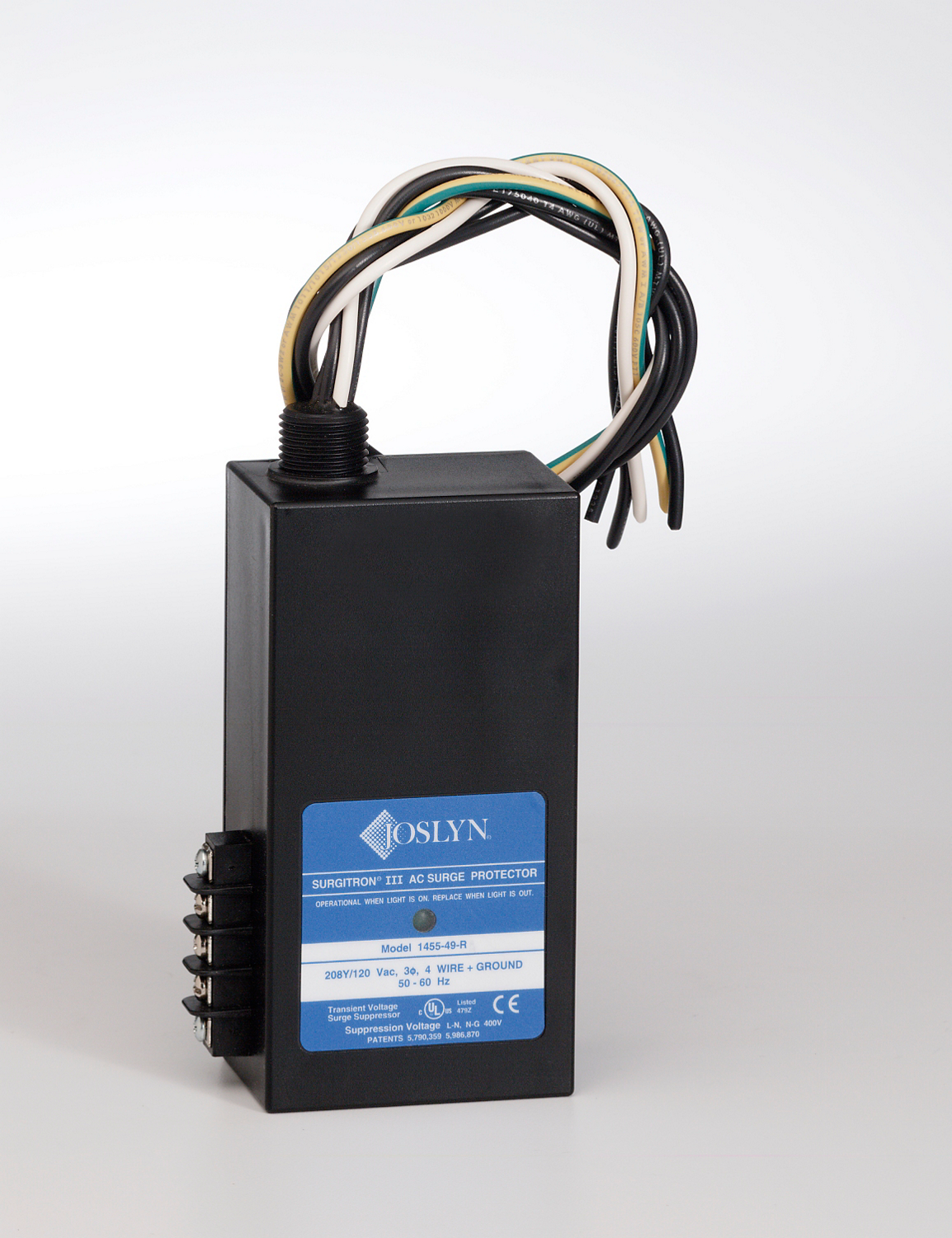

TB 1455-80 AC SURGE PROTECTOR, 208Y/120V
ABB Joslyn® Surge Protective Device, Type 1 Modular Design, Series: Surgitron® I, 120/208Y VAC, 50/60 Hz, 4W+G Wires, 100 kA Short Circuit Current, 120 kA Peak Surge, 500/700 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-N/N-G, <1 ns Response, LED Indicator, 3 ph, Environmental Conditions: -40 to 185 deg F Operating, 5 to 95% Non-Condensing Relative Humidity, NEMA 4, Flange Mount, Lug/Screw Terminal, 15.5 in H x 12.9 in W x 6.2 in D
ABB Joslyn® Surge Protective Device, Type 1 Modular Design, Series: Surgitron® I, 120/208Y VAC, 50/60 Hz, 4W+G Wires, 100 kA Short Circuit Current, 120 kA Peak Surge, 500/700 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-N/N-G, <1 ns Response, LED Indicator, 3 ph, Environmental Conditions: -40 to 185 deg F Operating, 5 to 95% Non-Condensing Relative Humidity, NEMA 4, Flange Mount, Lug/Screw Terminal, 15.5 in H x 12.9 in W x 6.2 in D
- For heavy duty service entrance, Type 1 and Type 2 SPD applications
- ABB Joslyn® Surge Protective Device, Type 1 Modular Design, Series: Surgitron® I, 120/208Y VAC, 50/60 Hz, 4W+G Wires, 100 kA Short Circuit Current, 120 kA Peak Surge, 500/700 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-N/N-G, <1 ns Response, LED Indicator, 3 ph, Environmental Conditions: -40 to 185 deg F Operating, 5 to 95% Non-Condensing Relative Humidity, NEMA 4, Flange Mount, Lug/Screw Terminal, 15.5 in H x 12.9 in W x 6.2 in D
- DEVICE PROT SRG 120/208YVAC 50/60HZ
- Specification Sheet
- UL 1449 3rd Edition|IEEE C62.41.1|IEEE C62 41.2|IEEE C62.45|ETL Listed|cULus Listed|cETLus Listed|ANSI/IEEE C62.41-1991
- Brand: Thomas & BettsApplication: Heavy duty service entrance applications, modular designCountry of Origin: USSpecial Features: Cover lights indicate status of modulesStandard: UL 1449 3rd Edition|IEEE C62.41.1|IEEE C62 41.2|IEEE C62.45|ETL Listed|cULus Listed|cETLus Listed|ANSI/IEEE C62.41-1991Sub Brand: JoslynType: Surge Protective Device - Heavy DutyVoltage Rating: 120/208 V
