TB SP4DL
MFG #SP4DL
UPC #78378680529
SKU #4097450
Product description
BLKBRN SP4DL SERVICE POST/DOUBLE CONNECTOR

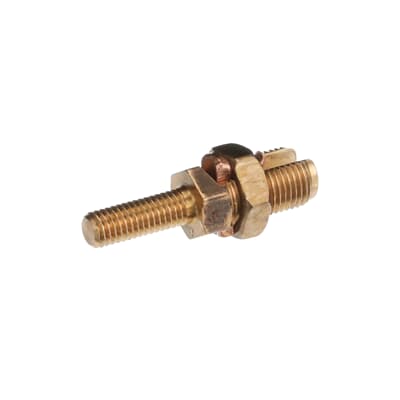

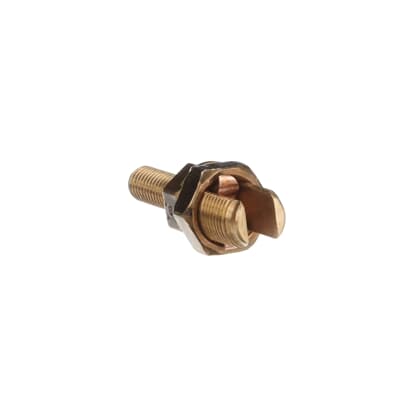

Blackburn® E-Z Ground® Service Post Connector, Type SP Long Stud Mechanical Grounding, 2 Conductors, 8 to 1 AWG, 8 to 2 AWG Conductor, 3/8-16 x 1-1/8 in Stud, Mechanical Connection, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, Specifications: 0.128 to 0.332 in Dia, Bronze Alloy/Copper
Blackburn® E-Z Ground® Service Post Connector, Type SP Long Stud Mechanical Grounding, 2 Conductors, 8 to 1 AWG, 8 to 2 AWG Conductor, 3/8-16 x 1-1/8 in Stud, Mechanical Connection, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, Specifications: 0.128 to 0.332 in Dia, Bronze Alloy/Copper
- For grounding and tapping
- Blackburn E-Z Ground Service Post Connector, Type SP Long Stud Non-Insulated Mechanical, 2 Conductors, 8 to 1 AWG, 8 to 2 AWG Conductor, 3/8-16 x 1-1/8 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.128 to 0.332 in Dia, Bronze Alloy/Copper
- CONNECTOR POST SVCE 2 3/8-16 X 1-1/8IN
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL File No. E9809
- Brand: Thomas & BettsApplication: For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus barBolt Size: 3/8 - 16 x 1 1/8Conductor Material: BronzeCountry of Origin: MXInsulation: NoMaterial: BronzeSpecial Features: Hex design bolts are machined from high-conductivity bronze alloyStandard: CSA Certified|UL File No. E9809Type: Mechanical Grounding
