MFG #W40-1
SKU #2415658
$12.94 per EA (1)Â /Â EA
149 in Stock. More available 05/17/2024
Stock Item
Product description

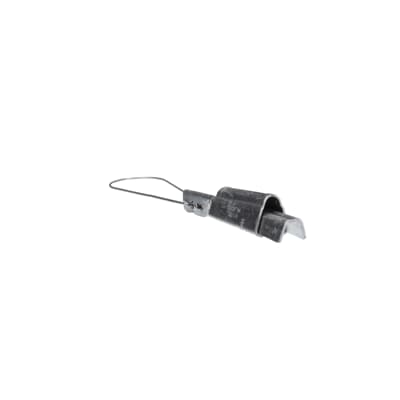

TB W40-1 SERVICE WEDGE CLAMP 2/0SOL-4/0STR AWG ALUMINUM
Blackburn Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D
Blackburn Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D
- For dead end self supporting drop wire applications
- Blackburn Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D
- Can be attached to bare neutral at any point in the span
Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
All seasons environmental conditions
Saves conductor - drop wire may be cut to exact length
Aluminum wedge and slider
W40 series clamps rated 850 lb, ultimate tension for 1/0 AWG ASCR, AL or AAAC
- CLAMP WG ENTR SVCE ASCR/AAAC/STRD AL R
- Product Catalog Page(s)
Specification Sheet
- Brand:Â Thomas & BettsApplication:Â Dead-End Self-supporting Drop WireColor:Â RedConductor Range:Â 4/0 to 2/0 ASCR AWG , 4/0 to 2/0 AAAC AWG , 4/0 STR AL AWG , 2/0 SOL AL AWGConnection:Â TensionCountry of Origin:Â MXEnvironmental Conditions:Â All Seasons / ConditionsFinish:Â BareInsulation:Â NoneMaterial:Â AluminumMounting:Â YesNumber Of Conductors:Â 1Size:Â Length 12-3/4 in X Depth 2-3/8 inSpecial Features:Â Drop wire may be cut to exact length for adjustments in drop wire sag. Can be attached to bare neutral at any point in the span. Flexible and rigid bails grip ACSR, AAC and AAAC ConductorsType:Â Aluminum Service Wedge ClampVoltage Rating:Â 35 kVIDW2 Image1 URL:Â https://ideadigitalasset.com/DAMRoot/Original/12190/12055_7FK62BYV1RGDL5U0.jpg
